25mm (1") Clear Multi Purpose Hose

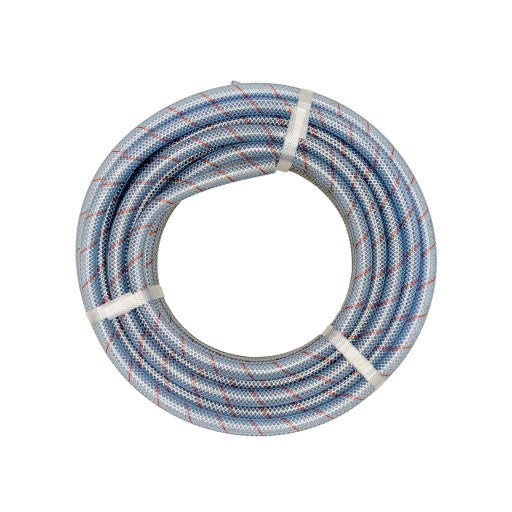

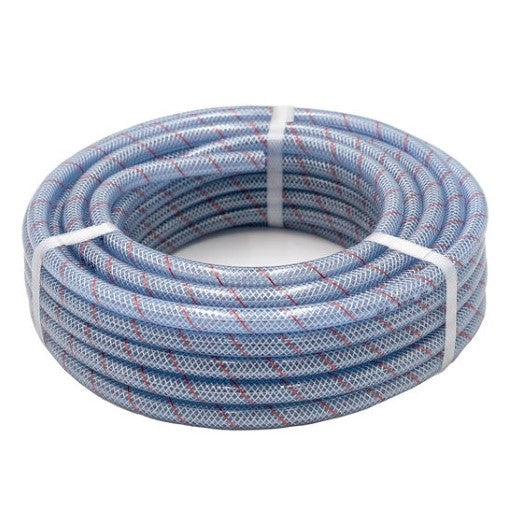

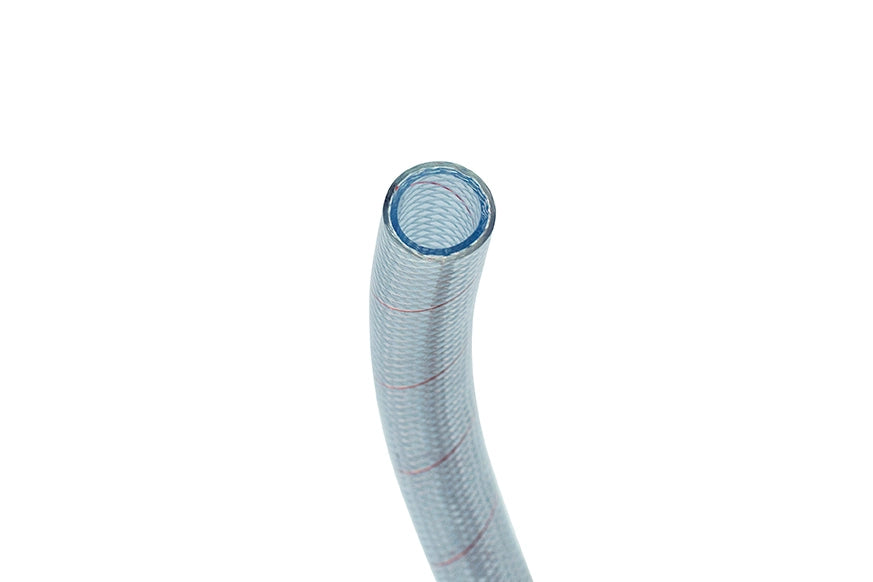

25 mm (1") clear braided PVC hose (part PHCMP25) is a large bore braided hose for volume transfer under pressure, common on pump discharge, brewery work and process lines where a clear wall helps confirm the line is running. The clear PVC wall carries a blue tint and a red tracer, with high tenacity polyester yarn braid taking the pressure and a UV stabilised outer layer taking the sun.

Key features

• Nominal inside diameter 25 mm (1")
• Working pressure 1.4 MPa (203 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Red tracer high tenacity polyester yarn braid
• Meets AS/NZS 2554, and AS/NZS 2070 for plastics in food contact
• Clear wall with a blue tint, so flow and blockages are visible
• UV stabilised outer with a smooth finish
• Cut to length or supplied in coils (20 m and 100 m)
• Not suitable as a permanent fuel line

Applications

• Pump discharge and transfer
• Brewery, winery and distillery lines
• Food and beverage processing
• Wash down and general water
• Mild chemical transfer

Compatibility and fitting

• Fits a 25 mm hose tail; secure with a hose clamp, two per end under pressure
• Brass and stainless tails to suit are in the brass fittings range
• For permanent petrol or oil lines use petrol and oil delivery hose
• For suction duty use a helix reinforced hose; braid holds pressure, not vacuum

Will it collapse on the suction side of a pump?

It will. This is a braided pressure hose, not a suction hose. On the suction side you need a helix reinforced hose that holds its bore under vacuum.

Bores from 6 mm to 50 mm are in the clear braided PVC hose range.
