25mm (1") Rubber Multi Purpose Hose

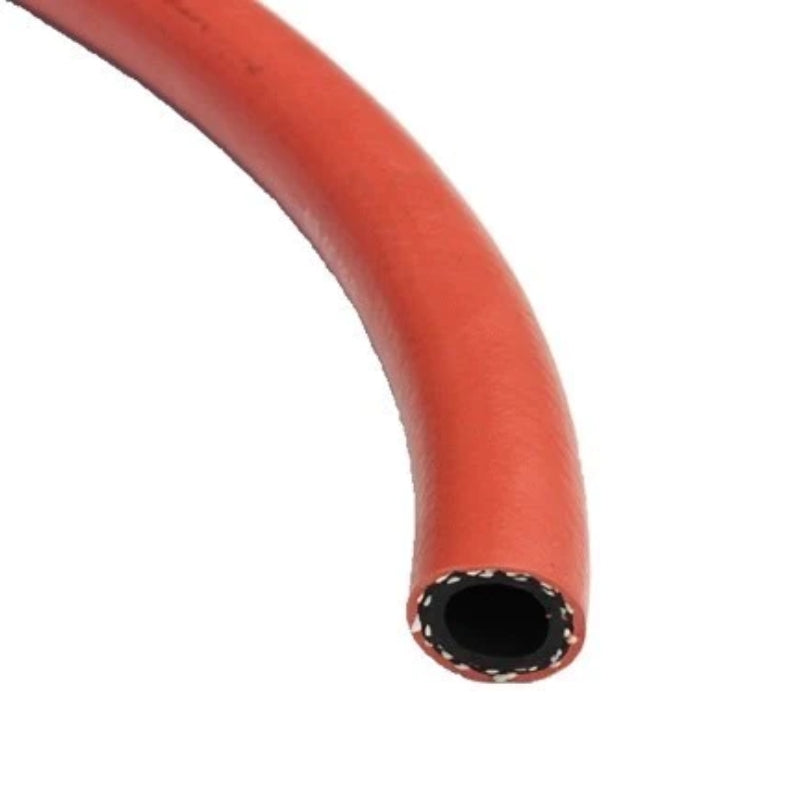

25mm (1") rubber multi purpose hose (part RMPT25) is a large bore hose for high volume air and transfer duties on site, where a smaller line would throttle the supply before it reached the work. The tube is black smooth synthetic rubber and electrically non-conductive, under a braided synthetic cord reinforcement and a red oil, ozone and weather resistant cover.

Key features

• Nominal inside diameter 25mm (1")
• Working pressure 20 bar (300 psi)
• Temperature range -25°C to +100°C
• Braided synthetic cord reinforcement for strength and kink resistance
• Electrically non-conductive tube and cover, with no static wire
• Oil resistant tube and cover for oily industrial environments
• Supplied cut to length or in 137 m coils
• Not suitable for fuels

Applications

• Site air compressor lines
• High volume transfer
• Plant and crusher air supply
• Bulk wash down
• Industrial process air

Compatibility and fitting

• Fits a 25mm hose tail; secure with a hose clamp, two per end under pressure
• Brass and stainless tails to suit are in the brass fittings range
• For petrol, diesel or fuel vapour use SAE 30R7 fuel hose, never this hose
• Keep within the -25°C to +100°C range; the cover hardens outside it

Is it still 20 bar at this size?

Yes, the range holds 20 bar (300 psi) across the sizes. What changes with bore is the weight, the handling and the volume it moves, not the pressure it will take.

Sizes from 5 mm to 38 mm are in the rubber multi purpose hose range.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
