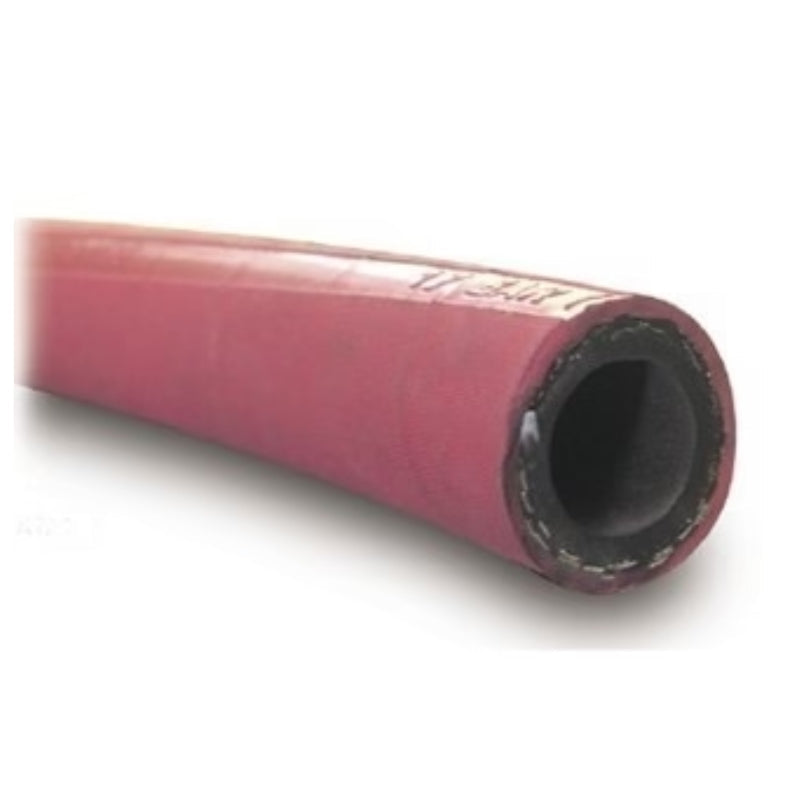

25mm Rubber Steam Hose Steel Wire Reinforced

At 25 mm (1") the bore stops being the restriction on a steam line. RSS25 is the largest steel wire reinforced steam hose we stock, used on process and heating runs that have to pass volume rather than reach into a corner. The rating does not change with the bore: 18 bar (270 psi) working pressure on saturated and superheated steam, -40°C to +210°C, with a conductive EPDM tube inside high tensile steel wire braids.

Key features

• Inside diameter 25 mm (1"), the largest bore in this range
• 18 bar (270 psi) working pressure
• -40°C to +210°C continuous, intermittent to 232°C
• High tensile steel wire braids under a red pin pricked EPDM cover
• Black smooth conductive EPDM tube
• Supplied in 1 m, 5 m, 10 m, 15 m and 20 m lengths
• Part number RSS25

Applications

• Process steam runs between plant items
• Tank, vat and jacket heating lines
• Larger steam cleaning and sanitising rigs
• Bitumen and asphalt plant heating circuits
• Timber and concrete curing rooms

Compatibility and fitting

• A 25 mm steam assembly carries real energy: crimp it, or use bolted steam clamps, and inspect the ends before every use
• Support long horizontal runs so the weight of a full hose is not hanging on the end fitting
• Clamps and bolted bands to suit are in the clamps range
• Lighter duty at the same bore is covered by 25 mm fabric reinforced steam hose

How long does a steam hose last?

There is no fixed figure. Steam hose is retired on condition, and the condition changes with cycles, not calendar time. Cut a length open when you replace one and look at the tube: hardening and cracking on the inside is the usual reason a hose fails before its cover looks worn.

Smaller bores are on the steel wire reinforced steam hose page.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
