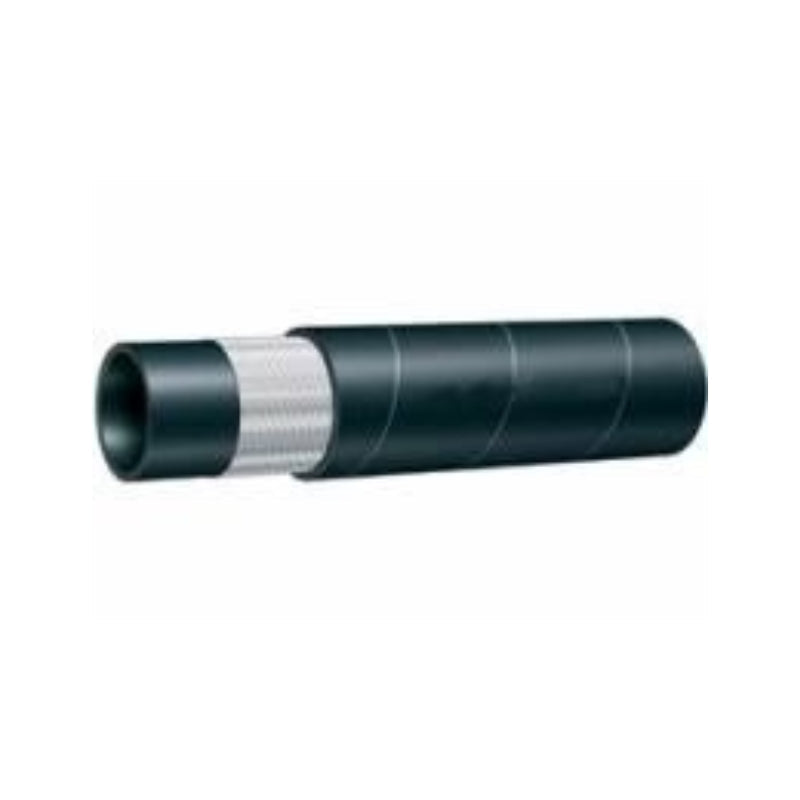

25mm (1") SAER6 Hydraulic Push on Hose 250psi

SAER616 is the 25 mm (1") bore and the largest we stock in SAE R6, rated to a maximum of 17 bar (250 psi). Nothing at this size is a pressure line: it is there to shift volume, on returns, tank plumbing and transfer duties. One textile braid over an oil resistant synthetic rubber tube, finished in a cover that handles weather, oil and abrasion.

Key features

• 25 mm (1") bore, the largest in the range, part SAER616
• Maximum pressure of 17 bar (250 psi)
• Single textile braid reinforcement
• Oil resistant synthetic rubber tube
• Synthetic rubber cover, weather, oil and abrasion resistant
• Temperature range from -40°C to +100°C, and +70°C maximum on air
• Cut to length between 1 m and 20 m, or supplied as a 50 m or 100 m coil or a 150 m spool

Applications

• High volume return lines on larger power packs
• Hydraulic tank plumbing and breather runs
• Transferring oil between drums and reservoirs
• Low pressure water and effluent movement
• Temporary bypass lines during a rebuild

Compatibility and fitting

• Fits 25 mm push on barbs; check the hose is seated fully before the system is filled
• 17 bar (250 psi) is the ceiling for this bore, not a working target
• This is a pressure hose, not a collapse resistant suction hose, so do not put it on the inlet side of a pump
• For a pressure line at 25 mm see two wire hydraulic hose
• Add HDPE spiral guard where the run touches steel

Why does a big hose have the lowest rating?

One textile braid has to hold back a much larger internal area at 25 mm than at 6 mm, so the pressure it can contain falls as the bore rises. Read the rating on the size, never on the range.

Does it need clamping on the barb?

The push on barb is designed to hold it. On a heavy 25 mm run that gets dragged or vibrated, a clamp over the barb is worth fitting for peace of mind.

All seven sizes sit in SAE R6 push on hose, within our hydraulic hose range.
