32mm (1 1/4") Clear Multi Purpose Hose

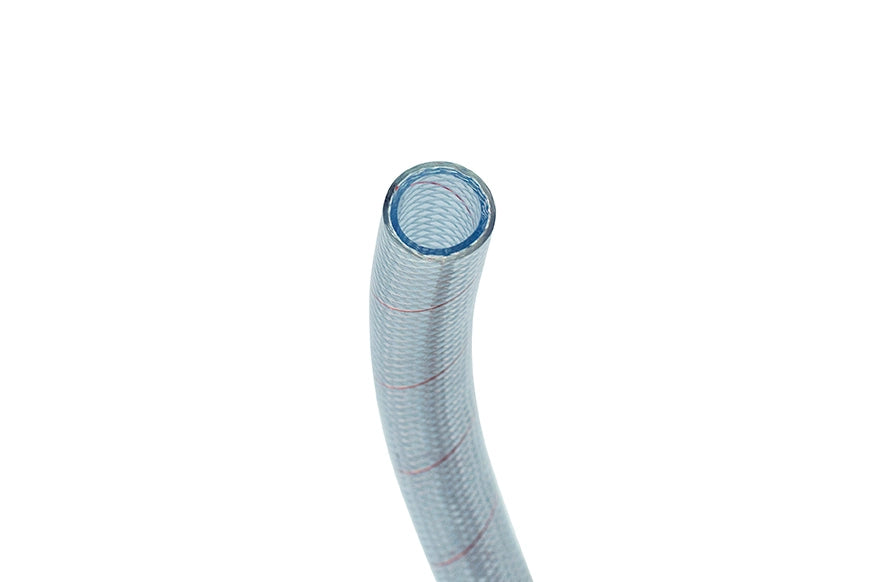

32 mm (1 1/4") clear braided PVC hose (part PHCMP32) is a heavy bore braided hose for high volume pressure transfer, where the flow matters and the clear wall is still worth having for checking the line. The clear PVC wall carries a blue tint and a red tracer, with high tenacity polyester yarn braid taking the pressure and a UV stabilised outer layer taking the sun.

Key features

• Nominal inside diameter 32 mm (1 1/4")
• Working pressure 1.2 MPa (174 psi) at 20°C, built to a 4:1 safety factor
• Operating temperature -5°C to +60°C
• Red tracer high tenacity polyester yarn braid
• Meets AS/NZS 2554, and AS/NZS 2070 for plastics in food contact
• Clear wall with a blue tint, so flow and blockages are visible
• UV stabilised outer with a smooth finish

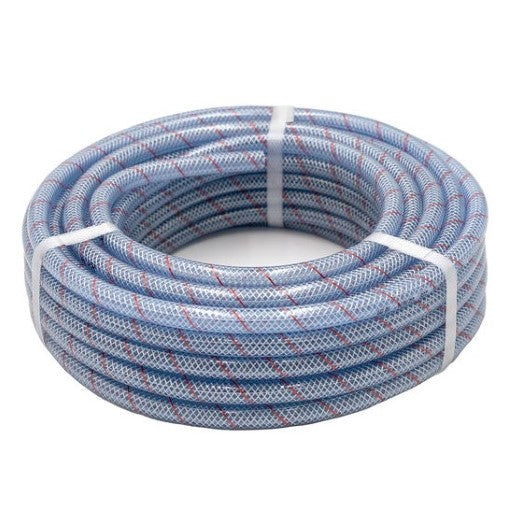

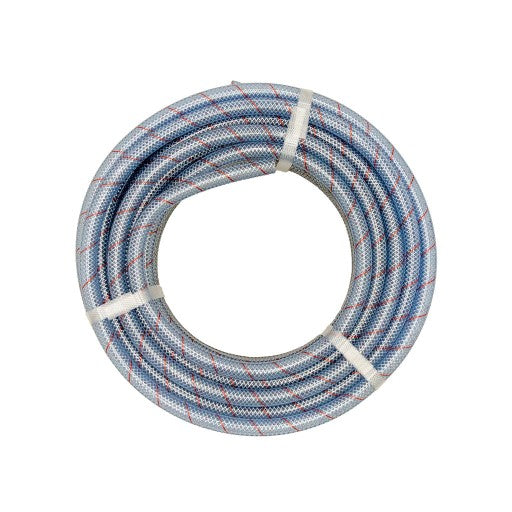

• Cut to length or supplied in coils (20 m and 60 m)
• Not suitable as a permanent fuel line

Applications

• High volume pump discharge
• Process and production transfer
• Brewery and beverage plant
• Wash down over long runs
• Mild chemical and water transfer

Compatibility and fitting

• Fits a 32 mm hose tail; secure with a hose clamp, two per end under pressure
• Brass and stainless tails to suit are in the brass fittings range
• For permanent petrol or oil lines use petrol and oil delivery hose
• For suction duty use a helix reinforced hose; braid holds pressure, not vacuum

Why does the rating fall as the bore grows?

Because the same braid has to hold back a larger area of pressure. The wall and the braid do not scale up in step with the bore, so a 32 mm hose holds less than a 10 mm one made the same way.

Bores from 6 mm to 50 mm are in the clear braided PVC hose range.
