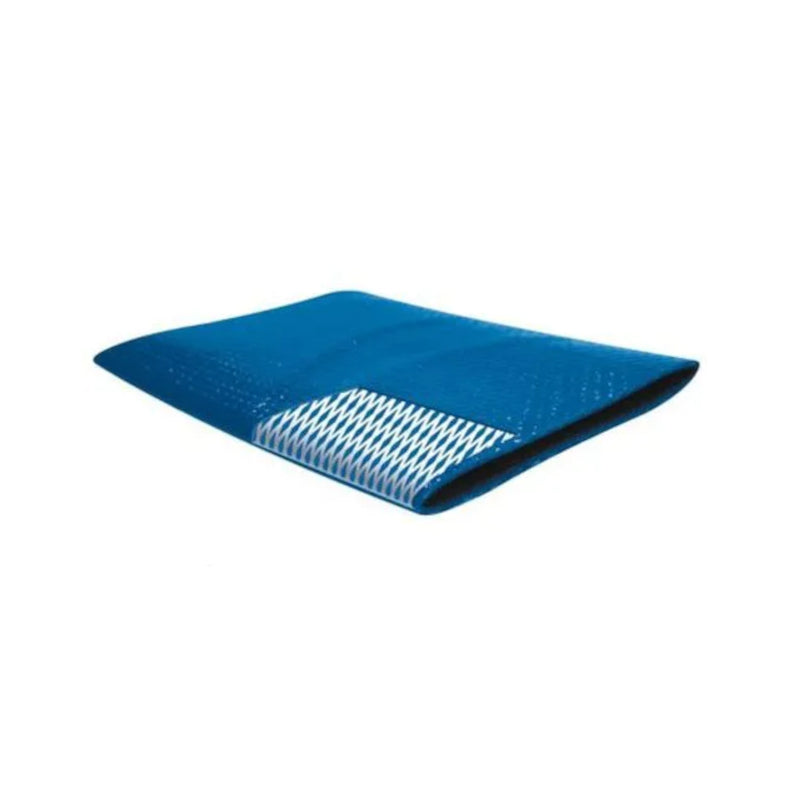

32mm Layflat Hose Blue

Blue layflat hose in a 32 mm bore, SKU LF032B, is the discharge line for small transfer and irrigation pumps. It lies flat on the reel and rounds out once water is in it, and at 100 psi (6.9 bar) it holds the highest working pressure of any bore in the blue range. Run it downstream of the pump only. There is nothing rigid in a layflat wall, so the moment a pump tries to draw through it the hose folds shut and loses prime.

Key features

• Nominal bore 32 mm, outside diameter 36 mm
• Working pressure 100 psi (6.9 bar) at 20°C
• Blue PVC wall with high tensile textile cord reinforcement
• Operating temperature -10°C to +60°C
• UV and abrasion resistant, so a run left out on open ground survives the season
• Cut from the 100 m coil in 1 m, 5 m, 10 m, 15 m, 20 m and 25 m lengths

Applications

• Discharge from small petrol and electric transfer pumps
• Garden and household irrigation runs
• Filling tanks and stock troughs from a pump
• Emptying pools, sumps and pits to a drain point
• Temporary water lines on small sites

Compatibility and fitting

• Terminates on 32 mm hose tails and camlocks, each held with two hose clamps
• Coupling types and sizes are listed under camlock fittings
• The inlet side of the same pump takes grey PVC suction hose, which carries a rigid helix
• Other bores in this range sit under blue layflat hose

Can 32 mm layflat hose go on the suction side of a pump?

No. The wall carries textile cord for pressure but nothing rigid to resist vacuum, so it shuts flat as soon as the pump draws on it. Suction duty needs a helix-reinforced hose instead.

Why is the 32 mm bore rated higher than the larger sizes?

Pressure acts across the area of the bore, so the same wall thickness holds more in a narrow hose. This size takes 100 psi where the 63 mm and larger bores are rated 60 psi.
