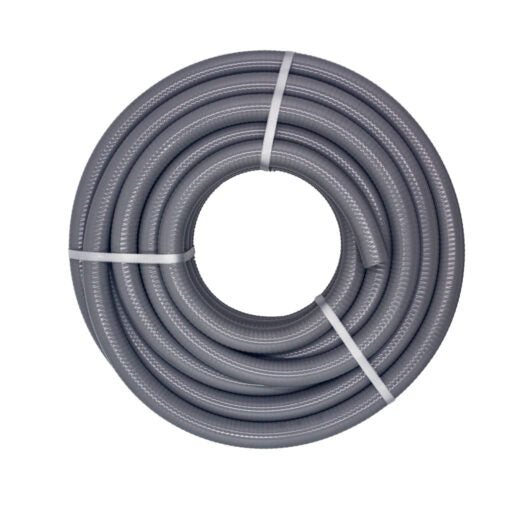

32mm PVC Water Suction Hose Grey

PSHG032 is the 32 mm grey suction hose: a flexible grey PVC wall with a rigid PVC helix wound through it, so the bore holds its shape while the pump is drawing. Outside diameter measures 39.4 mm and the pressure rating is 0.8 MPa (116 psi) at 20°C. It is the size to reach for when 25 mm chokes the flow but the pump is still small. Supplied as a 20 m coil.

Key features

• 32 mm bore against a 39.4 mm outside diameter
• 0.8 MPa (116 psi) at 20°C
• Rigid PVC helix, so the hose will not collapse on a pump inlet
• Meets AS/NZS 2070, the plastics for food contact standard
• Handles -5°C to +60°C
• One length option, the 20 m coil

Applications

• Inlet hose on small irrigation and transfer pumps
• Emptying tanks, drums and sumps
• Drawing water from a creek or dam through a strainer
• Moving mud and sandy water on a small site
• Grain and feed transfer with a vacuum unit

Compatibility and fitting

• Termination is a 32 mm hose tail or camlock, clamped over the helix
• Cam and groove couplings for this size are under camlocks
• Clamp to the 39.4 mm outside diameter using the hose clamps range
• Pair it with 32 mm blue layflat hose on the pump outlet
• Where the hose gets dragged over rock, step up to a rubber-covered suction hose

Will a 32 mm layflat hose work on the pump inlet instead?

No. Layflat has textile cord for pressure but nothing rigid for vacuum, so it collapses as the pump draws. Only a helix hose like this one keeps the inlet bore open.

Does the 20 m coil have to be cut?

It is stocked and sold as a 20 m coil for this bore. Keep the suction run as short and straight as the site allows, because every extra metre and bend costs the pump lift.
