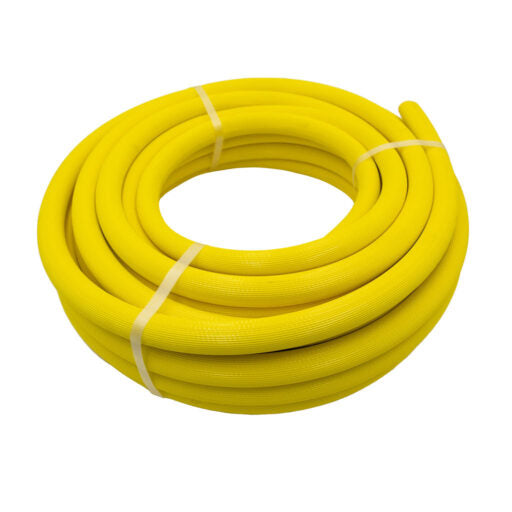

50mm Safety Yellow PVC Hose

At 50 mm, PHS50 is the largest safety yellow hose we stock and the one used for large bore transfer and dust suppression, where the volume matters more than the weight of the hose. The outside diameter is 62 mm. Despite the size it holds the same 1.6 MPa (230 psi) working pressure at 20°C as the smaller bores, to AS/NZS 2554 and a 4:1 safety factor, and the high visibility ribbed cover keeps a heavy line obvious on a shared site.

Key features

• 50 mm inside diameter, 62 mm outside diameter
• Smooth black PVC inner with a ribbed safety yellow cover
• High tenacity polyester yarn reinforcement
• Working pressure 1.6 MPa (230 psi) at 20°C
• 4:1 pressure safety factor
• Operating temperature -5°C to +60°C
• Conforms to AS/NZS 2554
• Cut 2 m to 15 m, or coils of 20 m, 30 m and 40 m

Applications

• Large bore water transfer between tanks and plant
• Dust suppression on haul roads and stockpiles
• Filling water carts and site tanks
• Flood and wash out work on civil sites
• High flow temporary mains

Compatibility and fitting

• Takes a 50 mm camlock tail; heavy band clamps must suit the 62 mm outside diameter
• Two people to move a charged 50 m coil, and lay it out before charging rather than after
• Smaller bores are on yellow PVC hose; for gritty water use Yellow Tail abrasive suction hose

Is 50 mm flexible PVC hose the same as flexible PVC pipe?

No. This is a reinforced pressure hose rated 230 psi, made to be dragged and coiled. Flexible pipe is a plumbing product with different fittings and no yarn reinforcement, and the two are not interchangeable on a pump.
