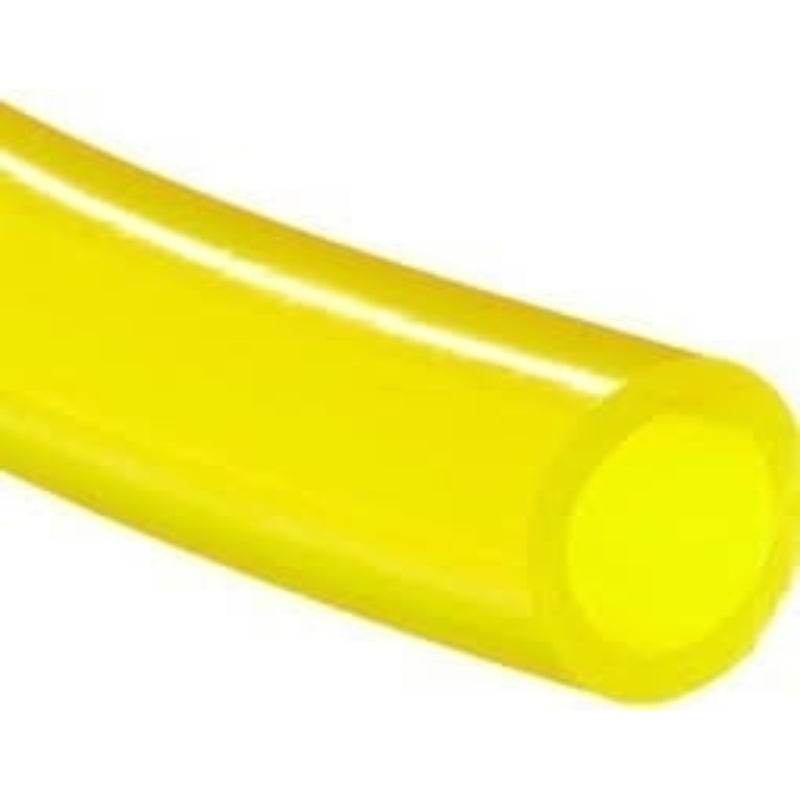

8mm Clear Yellow Tygon Hose F-4040A

8 mm is the outboard and generator fuel feed size, and TYGON5/16 is the busiest code in the F-4040A range for that reason. Maximum pressure at this bore is 25 psi, so it belongs on a gravity or primer-bulb feed rather than downstream of a pump. The tubing runs from 0 to 74°C and handles fuels, lubricants and some chemicals; the clear yellow wall lets you watch the line prime and spot water or debris before it reaches the carburettor.

Key features

• 8 mm inside diameter
• Tygon formulation F-4040-A
• Maximum pressure 25 psi
• Temperature range 0 to 74°C
• Fuels, lubricants and some chemicals
• Stock code TYGON5/16
• Cut in 1 m, 3 m, 5 m, 8 m, 10 m and 12 m, or a 15 m box

Applications

• Outboard fuel feed and primer bulb lines
• Portable generator and site pump fuel runs
• Light machinery tank-to-engine plumbing
• Decanting and transfer of fuel from jerry cans
• Vent and overflow lines on small tanks

Compatibility and fitting

• Push onto an 8 mm barb and secure with a clamp or fuel line clip from hose clamps
• Not for the pressure side of a fuel pump, which will exceed the 25 psi ceiling
• For marine fuel lines that must meet a standard, see USCG approved barrier fuel hose

Is 8 mm the same as 5/16?

It is the same item. The bore is listed as 8 mm and the stock code TYGON5/16 carries the imperial designation the tubing has always been sold under. Order by the millimetre bore and you will get the right one.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
