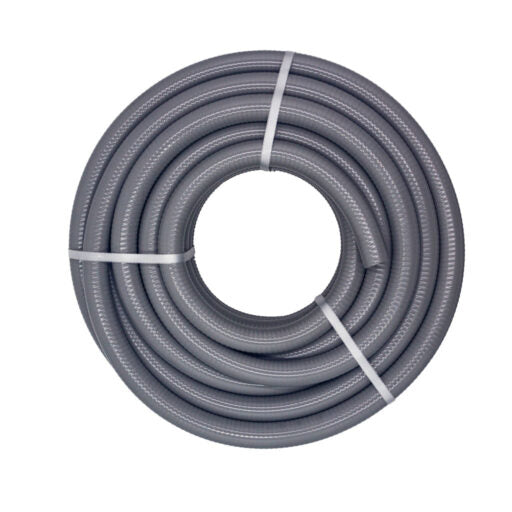

63mm PVC Water Suction Hose Grey

At 63 mm, PSHG065 feeds the larger irrigation and dewatering pumps that a 50 mm inlet would strangle. The wall is heavy duty flexible grey PVC with a rigid PVC helix through it, so vacuum from the pump cannot pull the bore shut. Outside diameter measures 74.4 mm and the working pressure is 0.6 MPa (87 psi) at 20°C. One length: the 20 m coil.

Key features

• 63 mm bore, 74.4 mm outside diameter
• 0.6 MPa (87 psi) at 20°C, the same rating as the 50 mm size
• Rigid PVC helix for vacuum duty
• Conforms to AS/NZS 2070
• Working range -5°C to +60°C
• Supplied in a 20 m coil

Applications

• Suction for larger irrigation pumps
• Dewatering pump inlets on civil sites
• Water cartage and tanker loading
• Moving muddy water, sand and grain
• Feeding a trash pump from a sump or pit

Compatibility and fitting

• Takes 63 mm camlocks and hose tails; browse camlock fittings
• Clamps must reach 74.4 mm over the shank, so check the range before ordering: hose clamps
• The discharge leg is usually 63 mm blue layflat hose or the red equivalent
• Where the run is dragged over rock all day, rubber suction hose lasts longer

Can this hose be bent tight around a pump?

The helix sets a minimum bend radius. Force it tighter and the spiral distorts and the bore chokes. Keep the run as straight as the site allows and add length rather than a hard bend.

Dispatched from our Brisbane warehouse. Australia-wide delivery, or collect from the warehouse once your order is confirmed ready.
